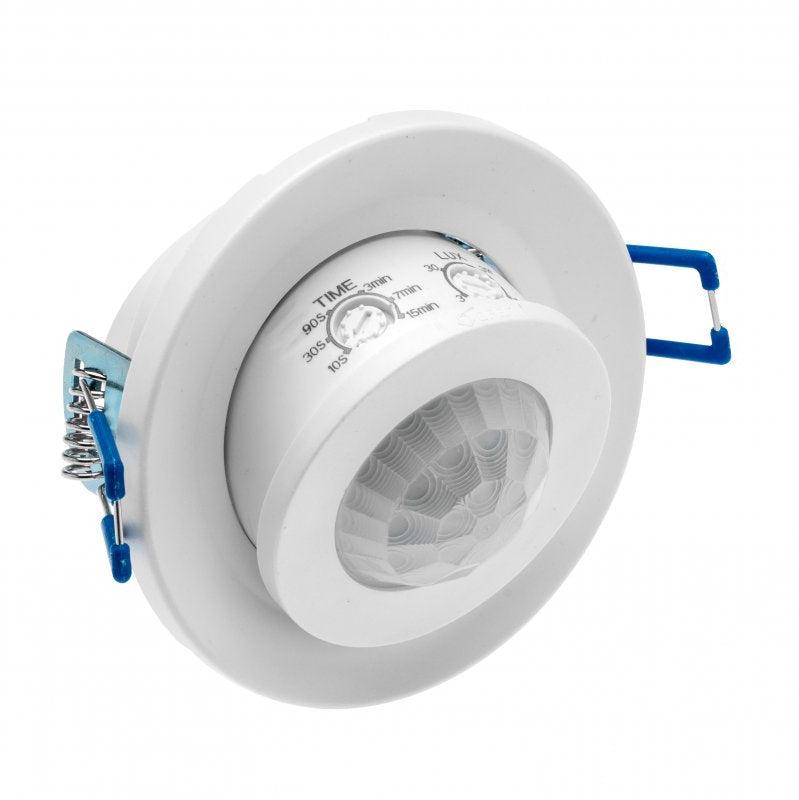

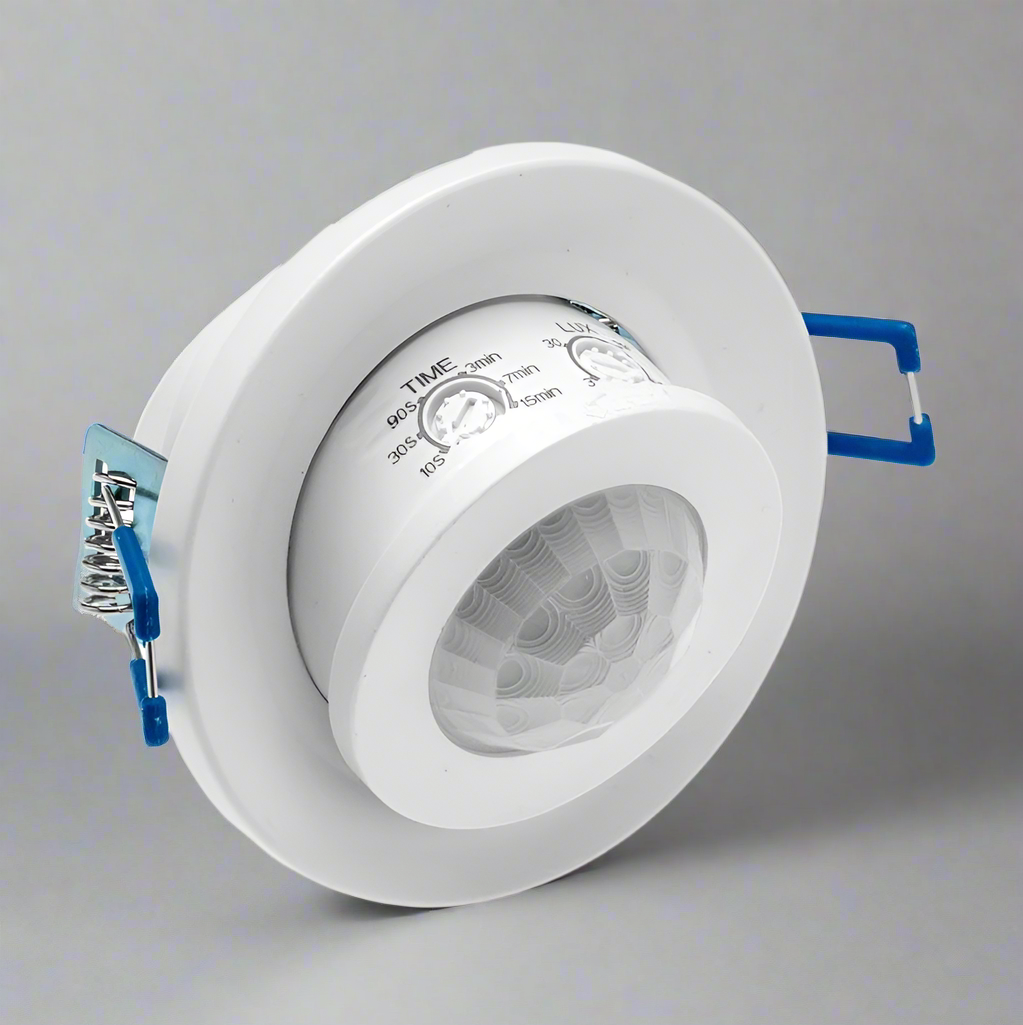

CGC Recessed Ceiling PIR Motion Sensor White IP20 Adjustable Detection Angle

The CR-15 motion sensor is a modern device that uses the technology of detecting infrared energy emitted by the human body, which ensures reliable operation both during the day and at night. With easy installation in a false ceiling and a recommended installation height of 2.2 to 4 meters, this sensor is the ideal solution for a variety of spaces.

The maximum detection range of the sensor is 8 meters, which allows for effective monitoring of the environment. The CR-15 automatically adjusts its operation based on light conditions, offering "sun" settings for operation regardless of the time of day and "3" for activation at light levels below 3 LUX.

The sensor also allows you to adjust the hold-up time when motion is detected, with options ranging from 10 seconds to 15 minutes (10 s, 30 s, 90 s, 3 min, 7 min, 15 min), allowing for full customisation to suit individual user needs.

Testing:

Turn the TIME dial counterclockwise to the minimum position (10 sec). Turn the LUX knob clockwise to the maximum (sun) position.

Turn on the power. At first, the sensor and the connected light source will not be active. After 30 seconds, the sensor will start working. If the sensor detects movement, the light will turn on. Otherwise, the light source will turn off after 10 seconds (± 3 seconds).

Turn the LUX knob counter clockwise to the minimum position (3). If the light intensity is above 3 LUX, the sensor and light will stop working. If the light intensity is below 3 LUX (darkness), the sensor will work. If no motion is detected, the sensor will turn off the light after 10 seconds (± 3 seconds).

Easy installation in a suspended ceiling with a recommended installation height of 2.2 to 4 meters, allows optimal adaptation to different spaces;

Selectable hold time from 10 seconds to 15 minutes, allowing you to tailor the operation to your individual needs.

CONSTRUCTION: Functional design made of quality durable plastic, fully certified for indoor use, professional quality motion sensor, the sensor works with both ordinary and LED light source

LIGHT OUTPUT: Enables connected lights to be switched on automatically when motion is detected within a set range maximum sensor load 800W

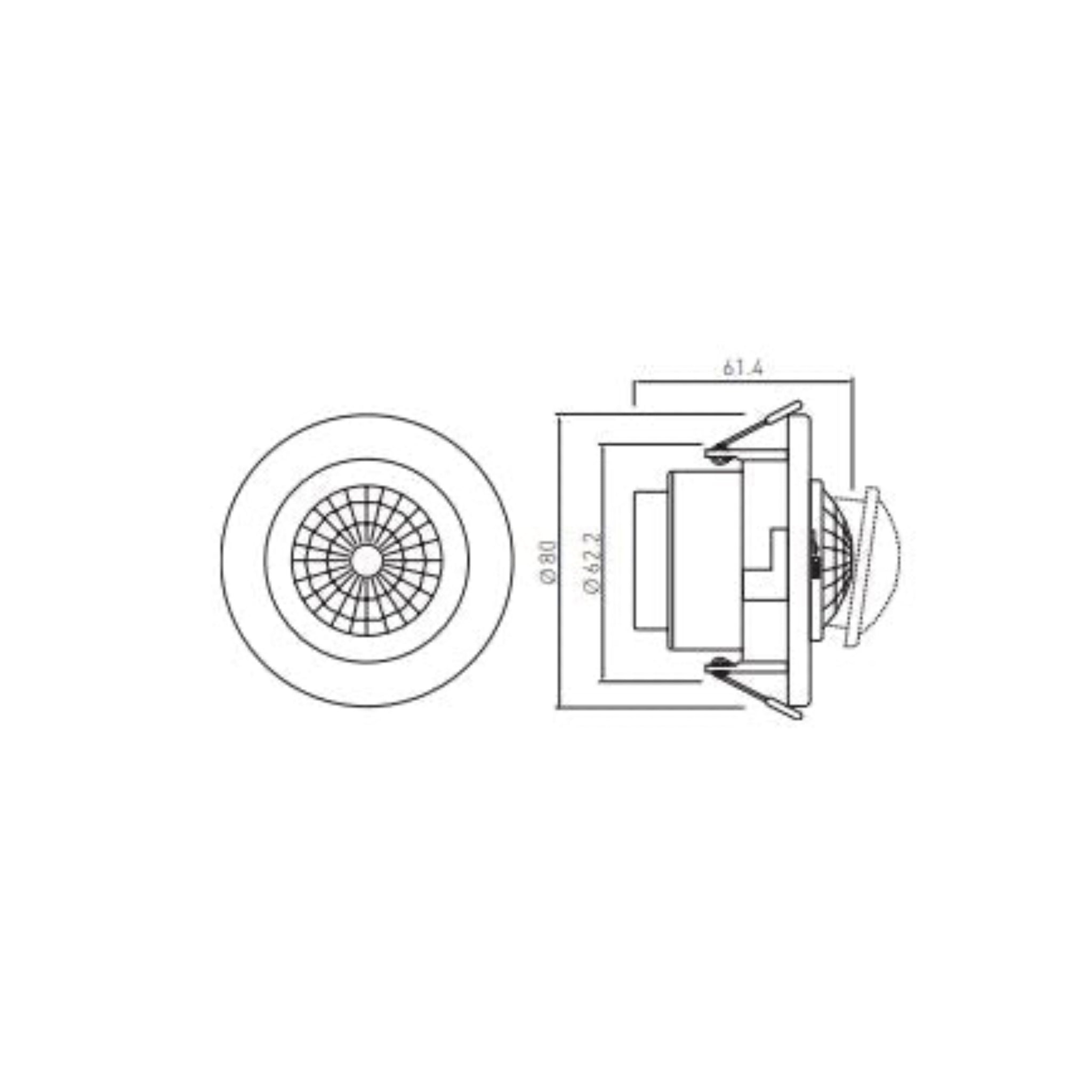

DIMENSIONS:

Diameter: 8 cm Depth: 6 cm

Sensor Movement Degrees: 360, Detection Range: 8 Metres

TECHNICAL: IP20 Rated for indoor use, 360 degree range, ceiling mounted, class 2

APPLICATIONS: Perfect for warehouses, toilets, work spaces, offices
